New Energy Cable Series
PSE Japan-Standard Flexible Cable
EV Charging Cable
- Product Model: SVCT
Product Applications
- Connection cable for electric vehicle charging stations

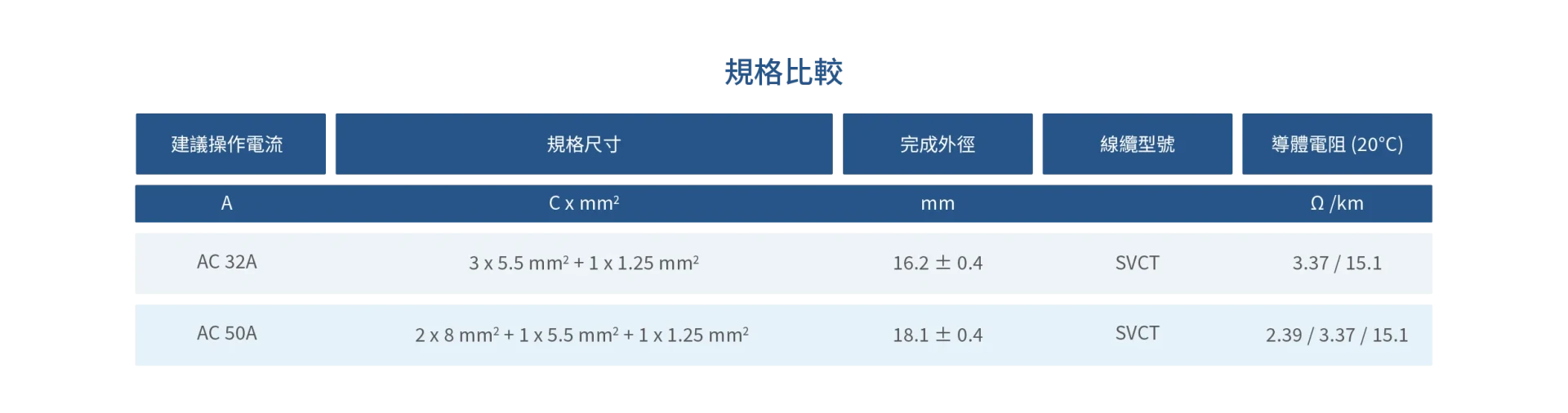

Technical Specifications
- Rated Voltage: 600V
- Rated Temperature: -40°C 至+90°C

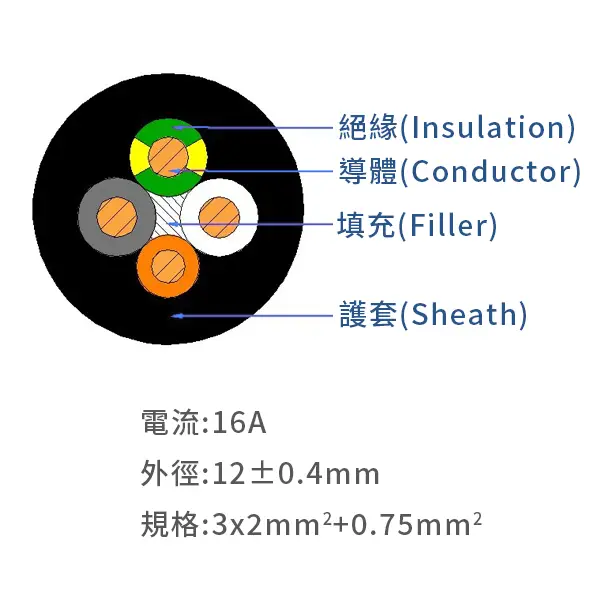

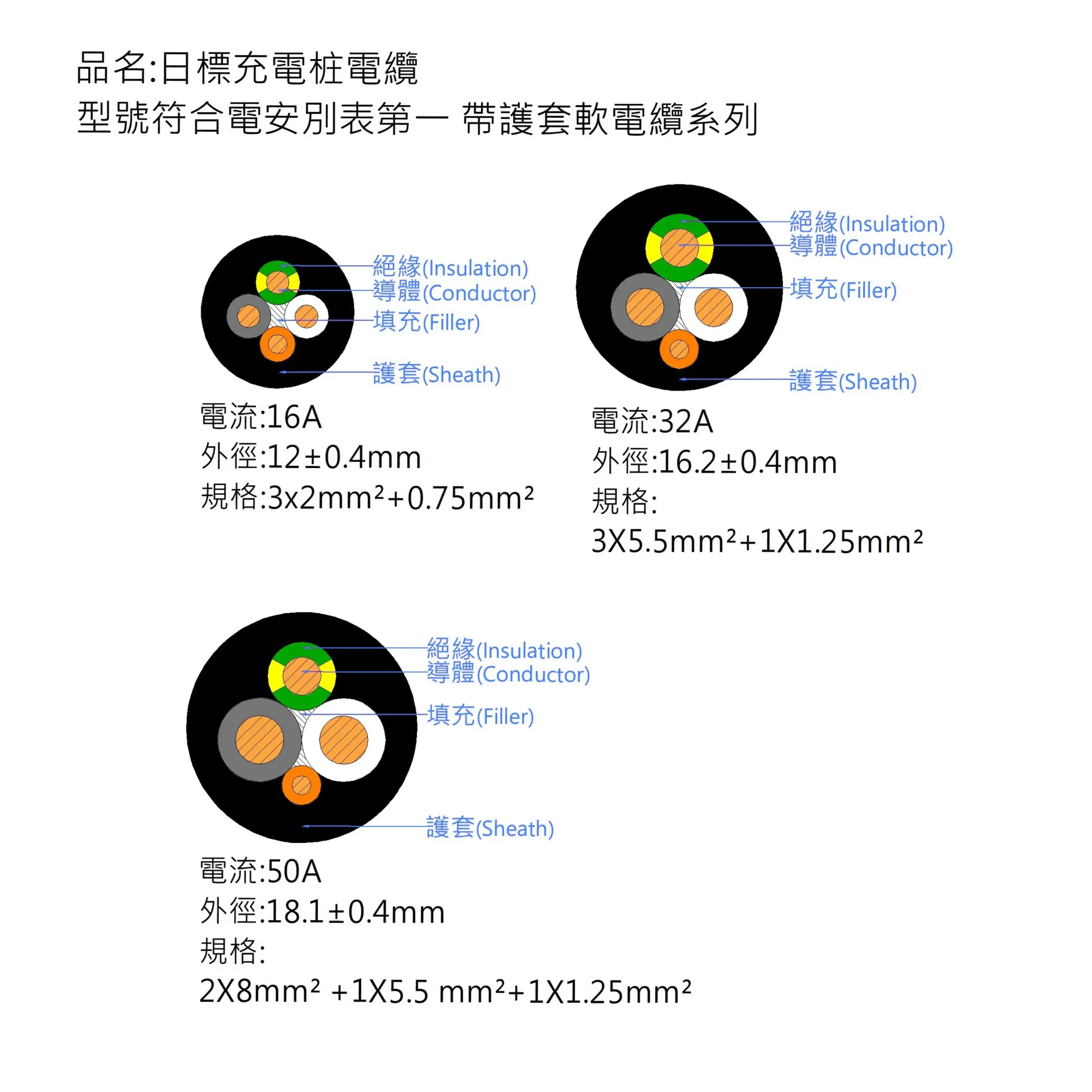

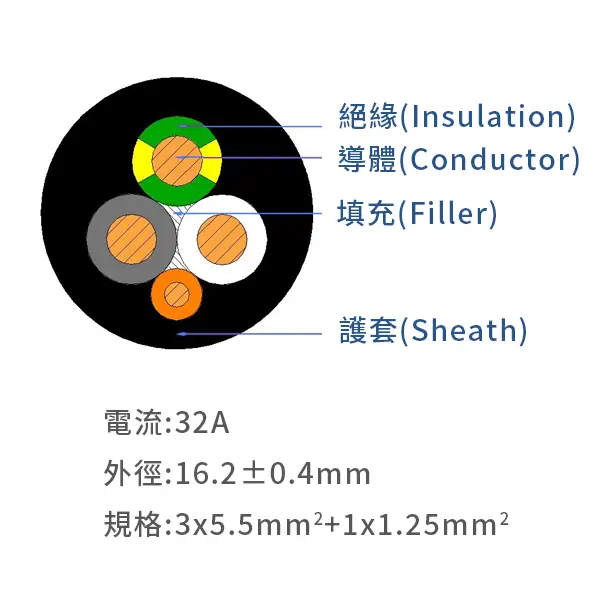

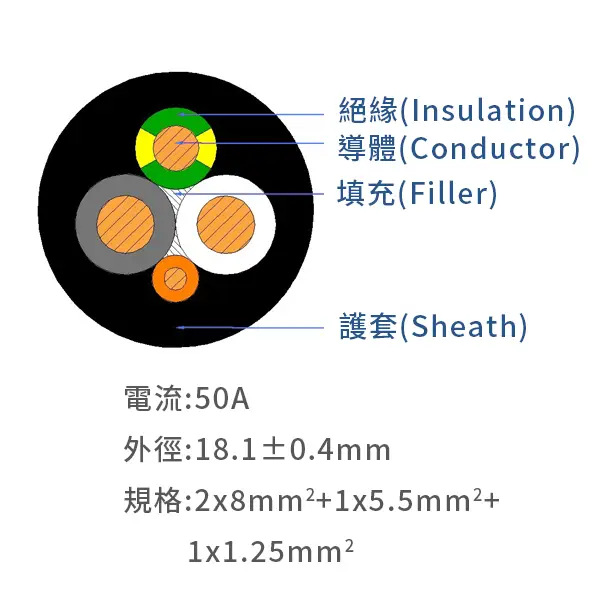

Construction
- Conductor: Bare stranded copper
- Insulation: PVC compound
- Outer Sheath: PVC compound
- Sheath Color: Black
Material Properties
- Flame Resistance: Self-extinguishes within 60 seconds after the flame is removed
- Heat Deformation: 120°C for 1 hour; reduction rate no more than 50%
- Oil Resistance: JIS C 2320 insulating oil, Class 1 Type 2, at 70°C for 4 hours
- Compliant with RoHS and REACH
Certifications
- Applicable Regulation: Electrical Appliance and Material Safety Act, Appendix Table 1
- Certificate Number: JET5477-12012-1001
All rights reserved.Subject to change with notice.
Product Highlights
High-temperature resistant; the material does not melt
Excellent flexibility at low temperatures
Long Service Life
