New Energy Cable Series
IEC European-Standard DC Charging Cable
EV Charging Cable
- Product Model: IEC126
Product Applications
- Connection cable for electric vehicle charging stations
Technical Specifications
- Rated Voltage: 600V / 1000V
- Rated Temperature: -40°C 至+90°C

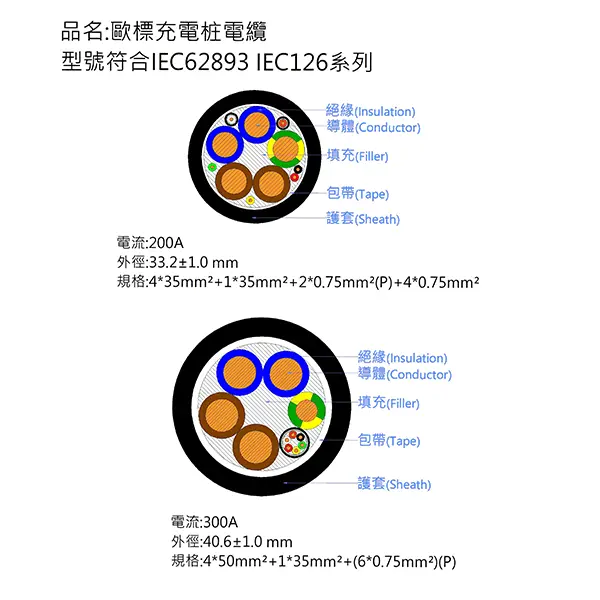

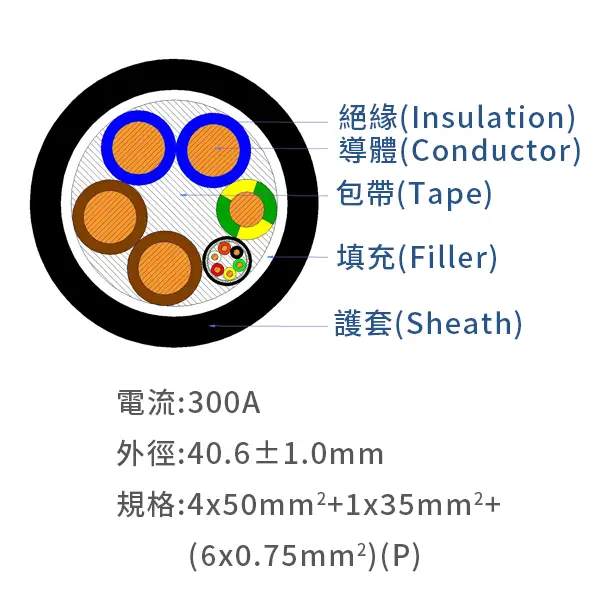

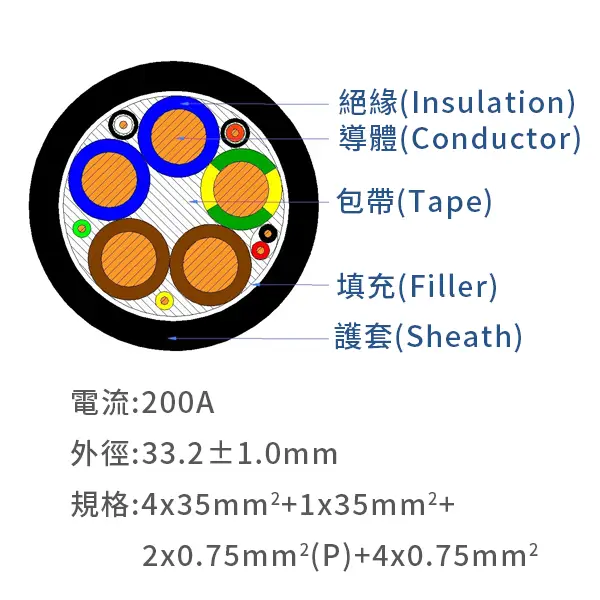

Construction
- Conductor: Bare stranded copper, EN 60228 Class 5
- Insulation: XLPE
- Filler: PP rope
- Outer Sheath: TPU
- Sheath Color: Black
Material Properties
- Flame Resistance: Single vertical flame test
- Ozone Resistance: 72 hours
- Ozone Concentration (by volume): 200土50x10-6 , no cracking
- Acid/Alkali Resistance: 5 hours
- Acidic solutions (common oxalic acid or acetic acid) and alkaline solutions (common sodium hydroxide solution) compliant with RoHS and REACH
Certifications
- Applicable Standards: EN50620、IEC62893-3 ; IEC62893-4-1
- Certificate Numbers: R50562680、R50562687、R 50562692
All rights reserved.Subject to change with notice.
Product Highlights
Low-Smoke, Halogen-Free Environmentally Friendly Product
High-temperature resistant; the material does not melt
Excellent flexibility at low temperatures
