New Energy Cable Series
UL US-Standard AC Charging Cable
EV Charging Cable
- Product Model: EVE / EVH
Product Applications
- Connection cable for electric vehicle charging stations

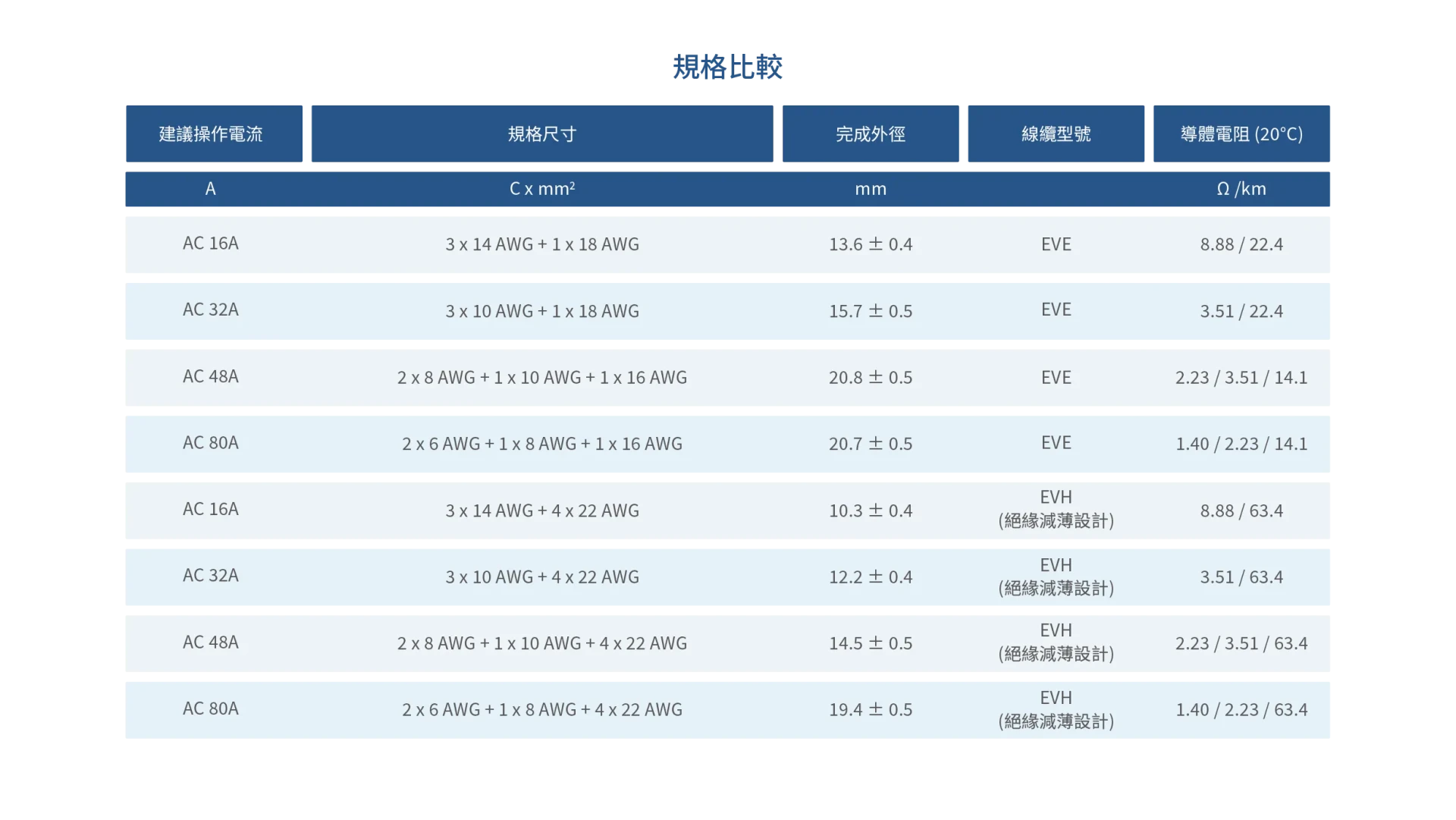

Technical Specifications
- Rated Voltage: 1000V
- Rated Temperature: -50°C 至+105°C

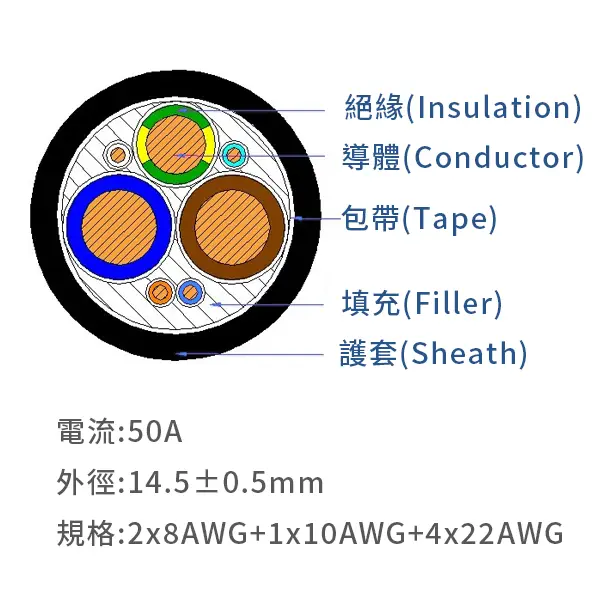

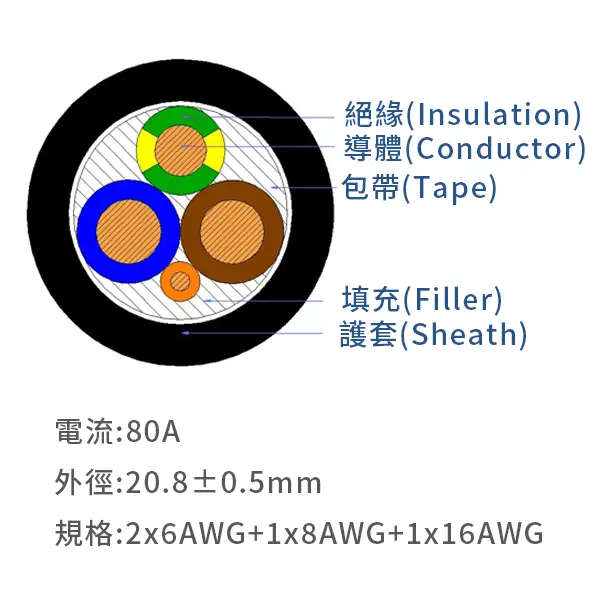

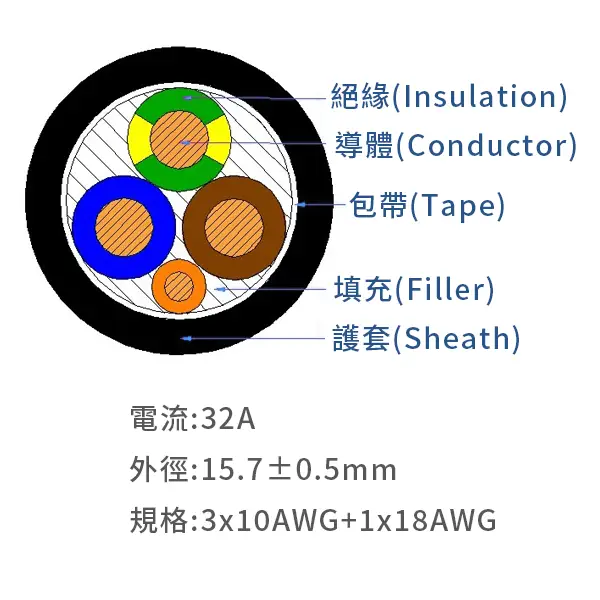

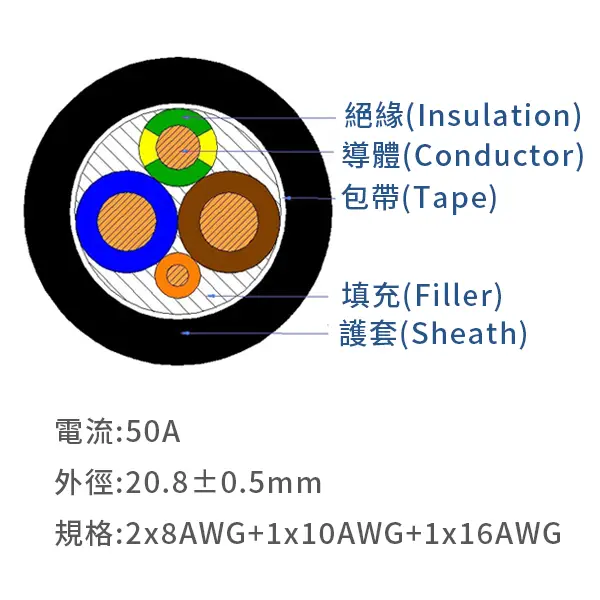

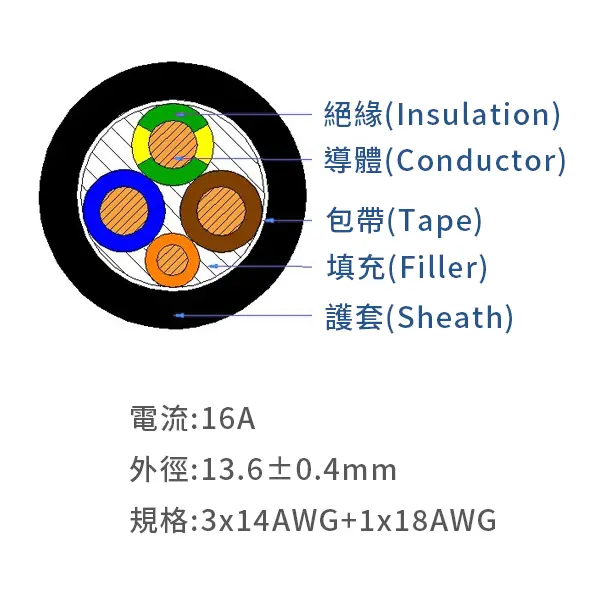

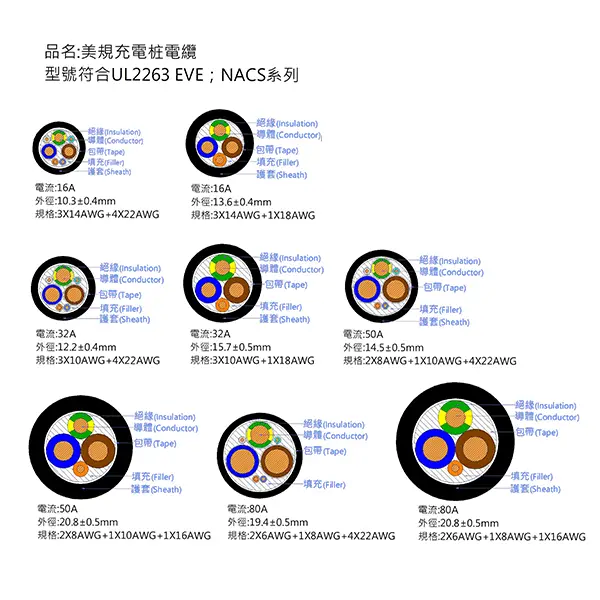

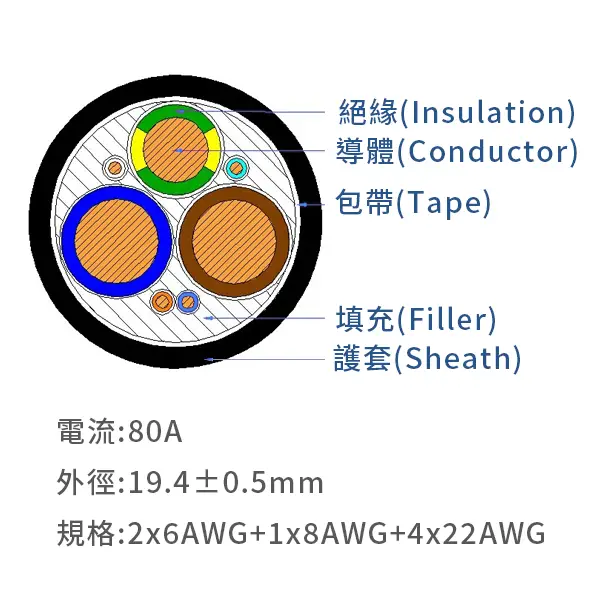

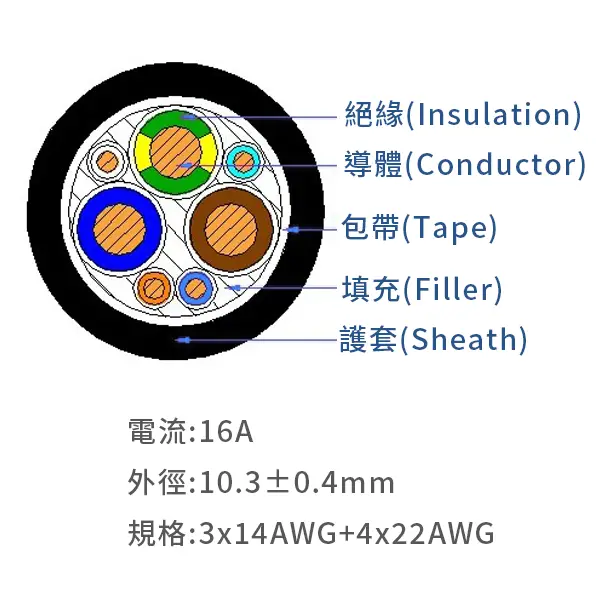

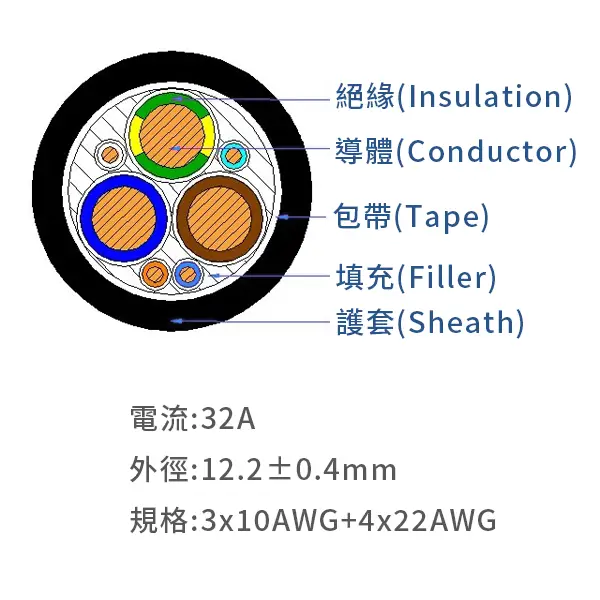

Construction
- Conductor: Bare stranded copper
- Insulation: 105°C TPE
- Filler: PP rope
- Outer Sheath: 105°C TPE
- Sheath Color: Black
Material Properties
- Flame Resistance: UL 2556 VW-1
- Weather Resistance: Tested using a xenon-arc weathering tester for 720 hours with no cracking
- Oil Resistance: IRM 902, 60°C for 168 hours
- Compliant with RoHS and REACH
Certifications
- Applicable Standard: UL2263
- Certificate Number: E516181
All rights reserved.Subject to change with notice.
Product Highlights
High-temperature resistant; the material does not melt
Excellent flexibility at low temperatures
Long Service Life
