New Energy Cable Series

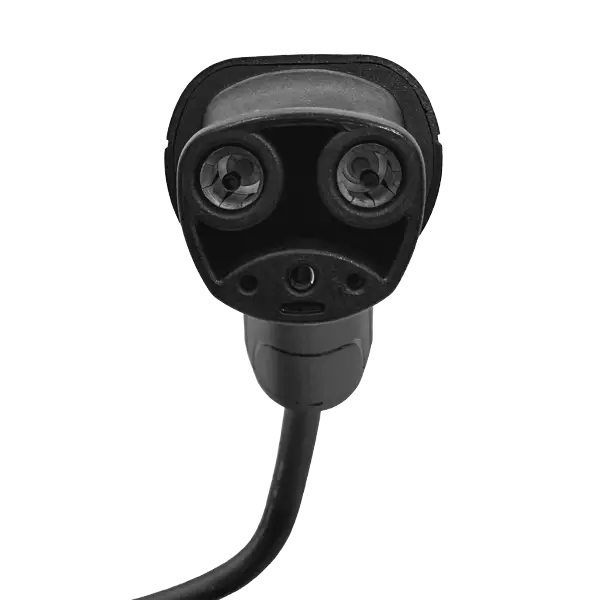

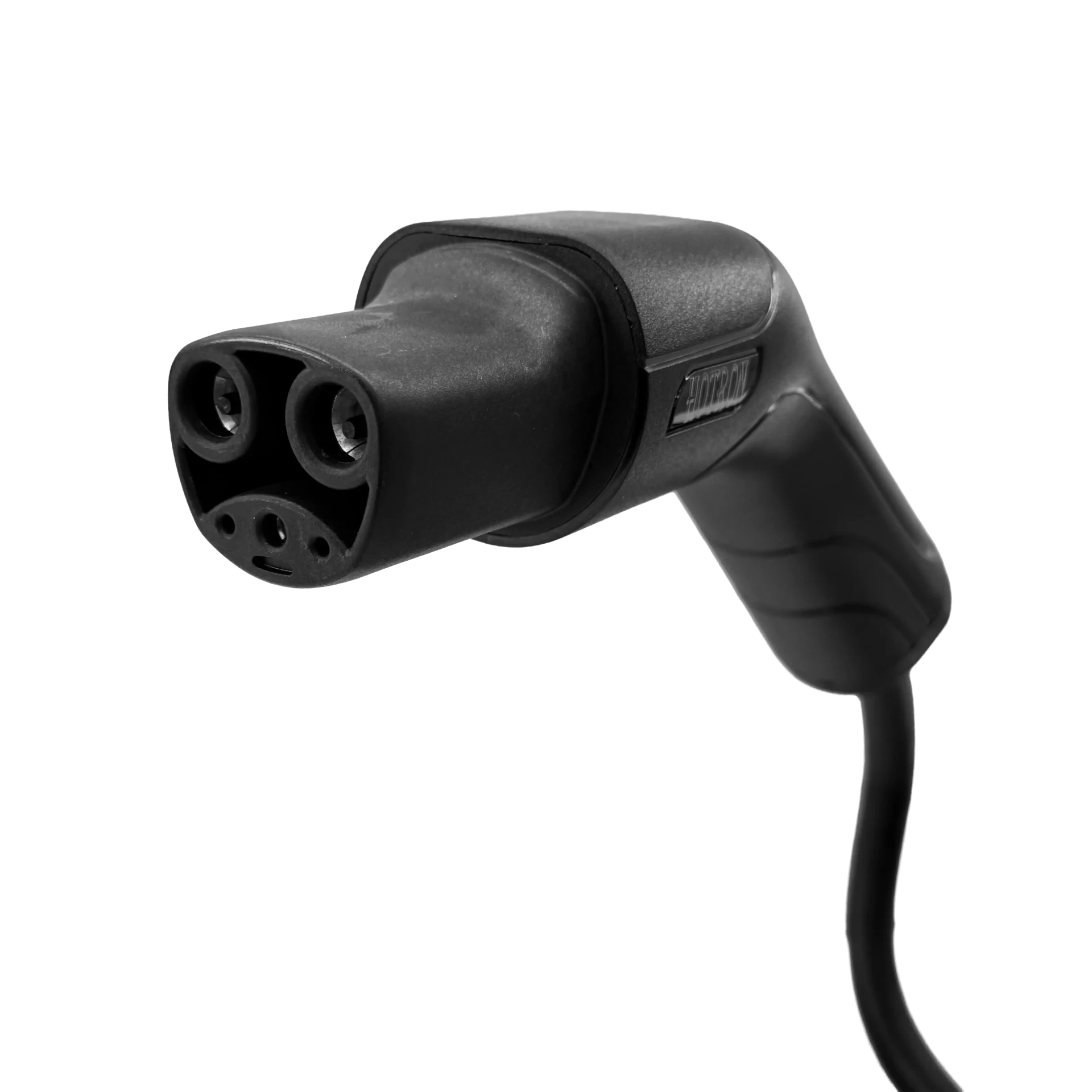

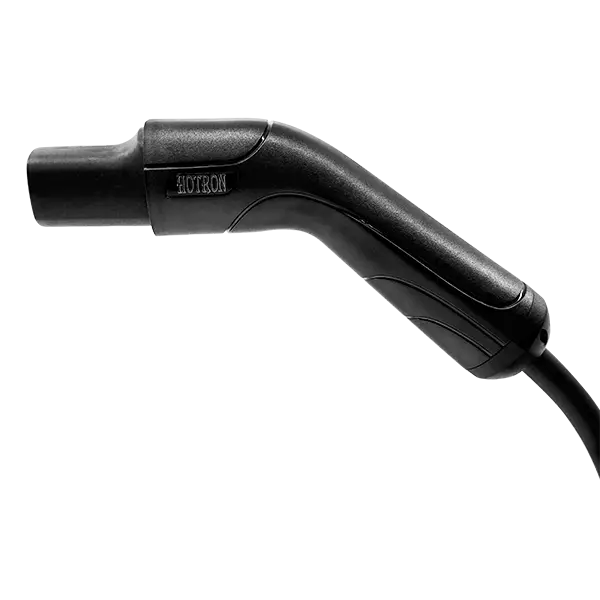

AC Charging Connector NACS
EV Charging Connector
- Product Model: NACSAC1P32AA00 / NACSAC1P50AT00 / NACSAC1P80AP00
Product Applications
- For charging needs in residential or commercial locations

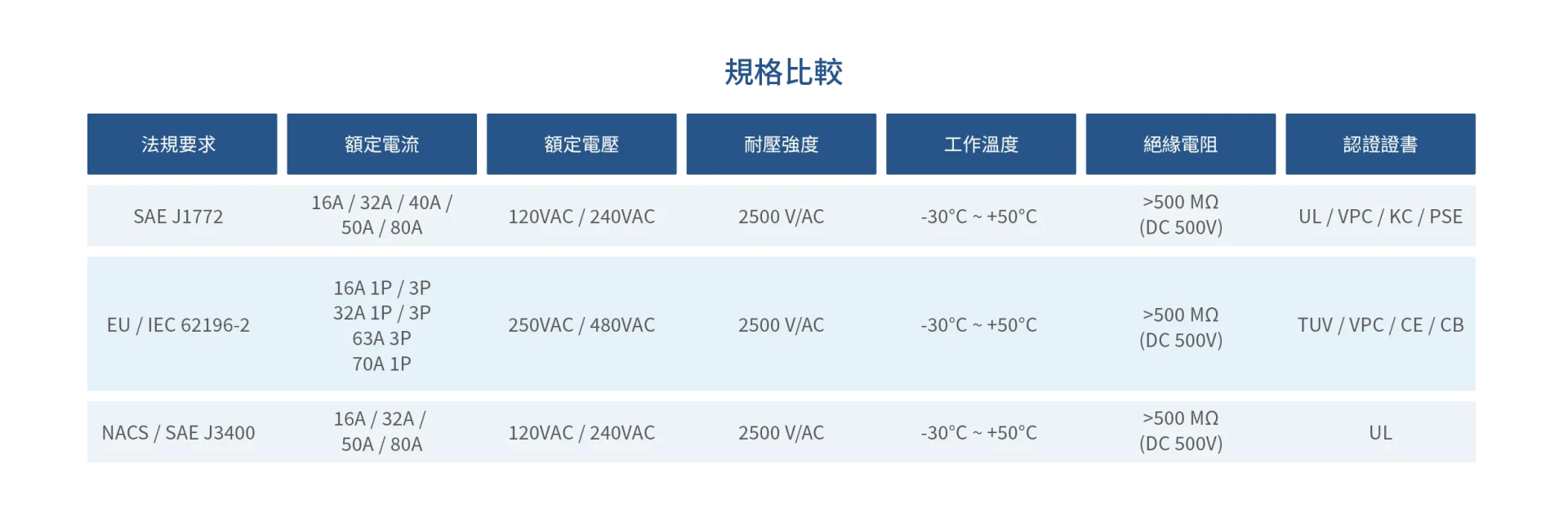

Technical Specifications
- Rated Voltage: 120 VAC / 240 VAC
- Rated Current: 16A / 32A / 50A / 80A
- Withstand Voltage: 2500V/AC
- Operating Temperature: -30°C 至+50°C
- Insulation Resistance: >500MΩ ( DC 500V )
- Service Life: ≥ 10000次
Material Properties
- Housing: Made from imported PC9330 plastic material; compliant with RoHS and REACH, halogen-free, and UV-resistant.
- Mechanical Properties: Tensile modulus 2100 MPa, yield strength 58.6 MPa, tensile strength at break 61.4 MPa, and elongation 130%.
- Low-Temperature Impact Performance: Maintains good performance at extremely low temperatures (-60°C).
Certifications
- Applicable Standards: IEC 62196 / UL 2251 / SAE J3400
- Certification Obtained: UL
All rights reserved.Subject to change with notice.
Product Highlights
Excellent Temperature-Rise Performance
Ergonomic Design with a Modern Aesthetic
Excellent Flame Retardancy and Protection Rating
