New Energy Cable Series

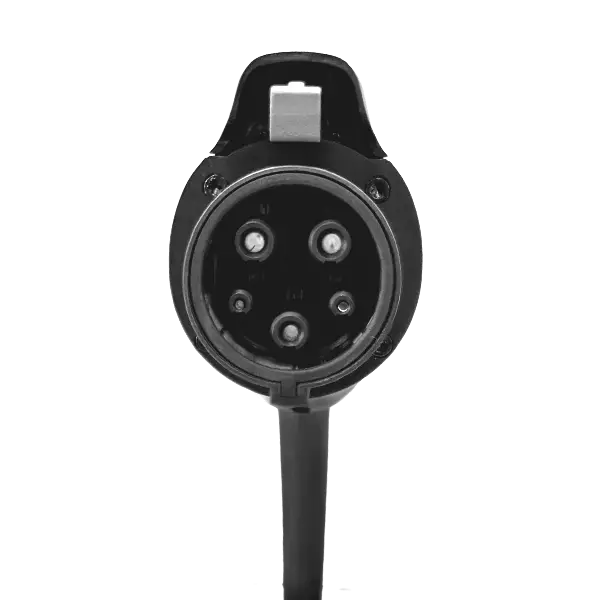

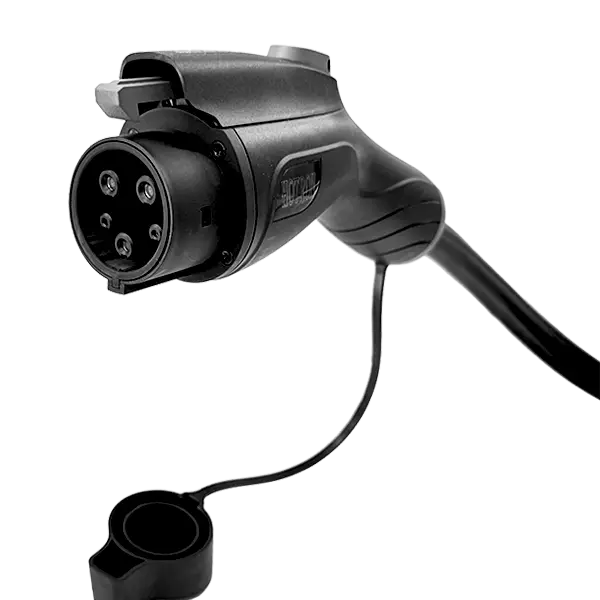

AC Charging Connector Type 1
EV Charging Connector
- Product Model: HTN NA AC 1P 16A B00 / HTN NA AC 1P 32A B00 / HTN NA AC 1P 40A B00 / HTN NA AC 1P 50A B00 / HTN NA AC 1P 50A T00 / HTN NA AC 1P 80A B00 / HTN NA AC 1P 80A P00 / HTN NA AC 1P 16A B00 / HTN NA AC 1P 32A B00
Product Applications
- For charging needs in residential or commercial locations

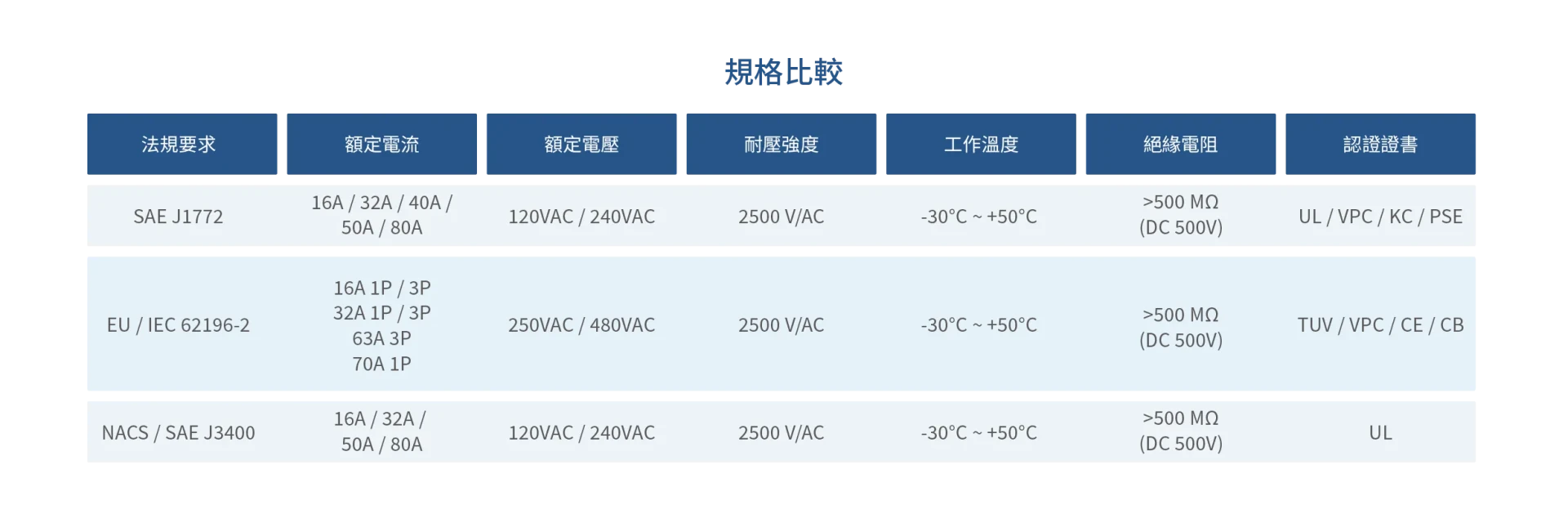

Technical Specifications
- Rated Voltage: 120VAC / 240VAC
- Rated Current: 16A / 32A / 40A / 50A / 80A
- Withstand Voltage: 2500V/AC
- Operating Temperature: 30°C 至+50°C
- Insulation Resistance: >500MΩ ( DC 500V )
- Service Life: ≥ 10000次
Material Properties
- Housing: Made from imported PC9330 plastic material; compliant with RoHS and REACH, halogen-free, and UV-resistant.
- Mechanical Properties: Tensile modulus 2100 MPa, yield strength 58.6 MPa, tensile strength at break 61.4 MPa, and elongation 130%.
- Low-Temperature Impact Performance: Maintains good performance at extremely low temperatures (-60°C).
Certifications
- Applicable Standards: IEC 62196 / UL 2251 / SAE J3400
- Certifications Obtained: UL / VPC / KC / PSE
All rights reserved.Subject to change with notice.
Product Highlights
Excellent Temperature-Rise Performance

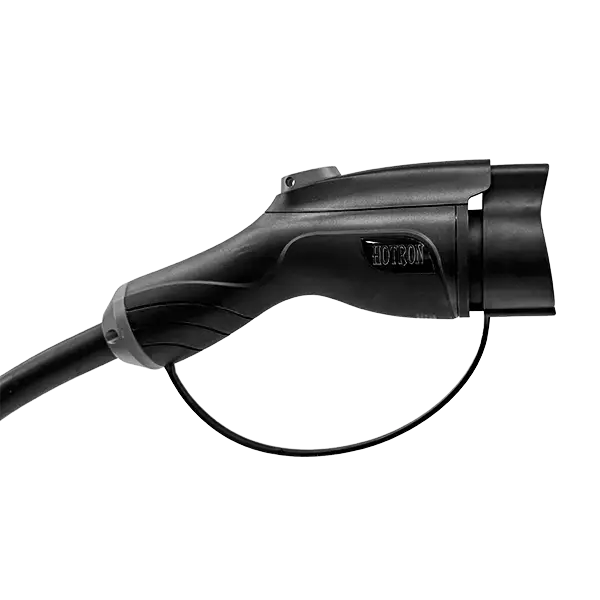

Ergonomic Design with a Modern Aesthetic
Excellent Flame Retardancy and Protection Rating
