New Energy Cable Series
UL Solar Cable

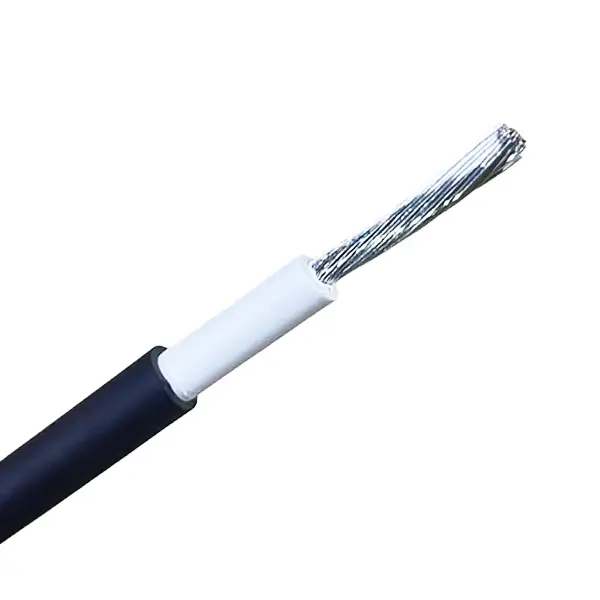

Solar Cable

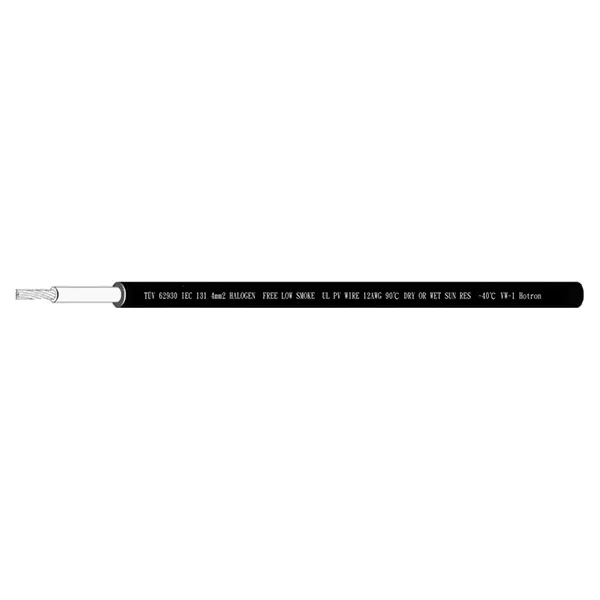

- Product Model: PV WIRE
Product Applications
- Connection cable for solar power generation systems
Technical Specifications
- Rated Voltage: AC 600 V; AC 1,000 V / 2,000 V
- Ambient Operating Temperature: -40°C to +90°C
- Maximum Conductor Temperature: +90°C (+120°C permitted for a limited duration of 20,000 hours)
- Service Life: >25 years

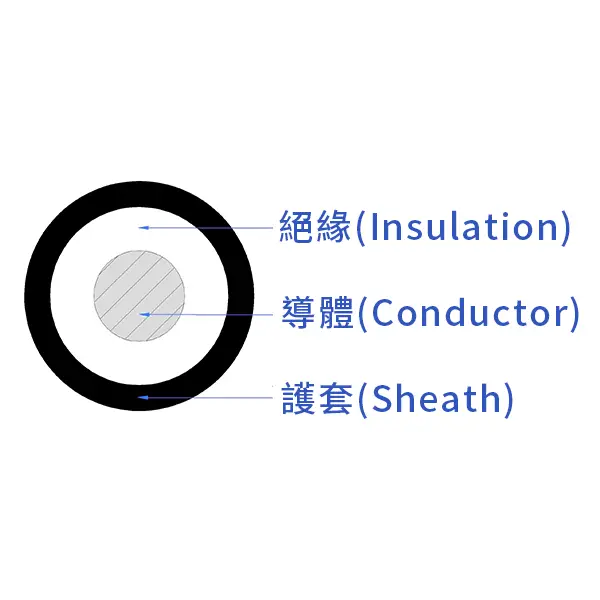

Construction
- Conductor: Tinned annealed stranded copper
- Insulation: Low-smoke, halogen-free cross-linked polyolefin
- Sheath: Low-smoke, halogen-free cross-linked polyolefin
- Sheath Color: Black
Material Properties
- Flame Resistance: UL VW-1
- UV Resistance: UL 4703
- Long-Term Insulation Resistance in Water: UL 44
- Compliant with RoHS and REACH
Product Series
- Product Specifications: 1x12AWGmm² / 1x10AWGmm² / 1x8AWGmm² / 1x6AWGmm² / 1x4AWGmm² / 1x2AWGmm² / 1x1AWGmm²
Certification
- Certification standard: UL 4703 Type PV
- Certification number: E526182
All rights reserved.Subject to change with notice.
Product Highlights
Low-smoke, halogen-free environmentally friendly product
High-temperature resistant; the material will not melt
Excellent low-temperature flexibility
