New Energy Cable Series
IEC Solar Cable

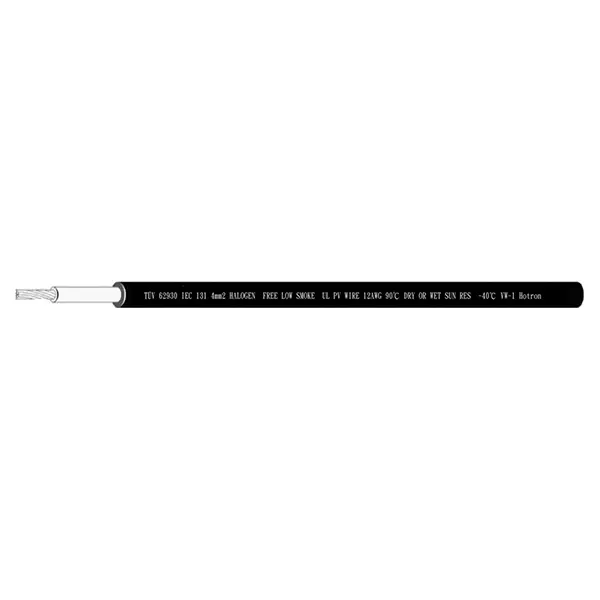

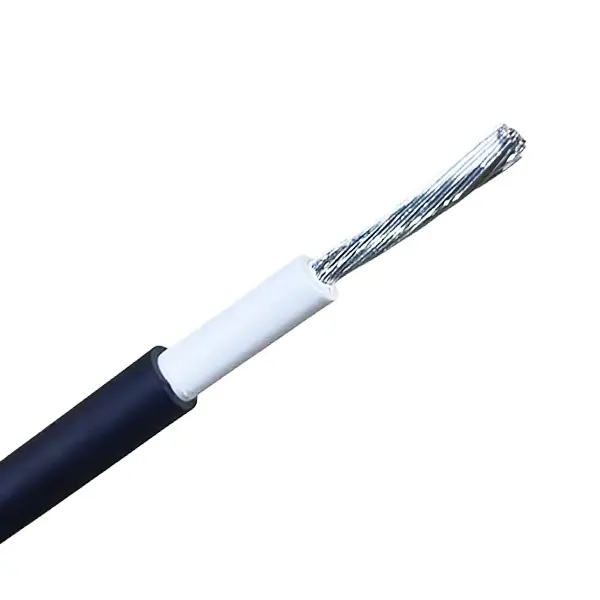

Solar Cable
- Product Model: IEC131
Product Applications
- Connection cable for solar power generation systems
Technical Specifications
- Rated Voltage: AC 1,000V；DC 1,500V
- Ambient Operating Temperature: -40°C to +90°C
- Maximum Conductor Temperature: +90°C (+120°C permitted for a limited duration of 20,000 hours)
- Service Life: >25 years

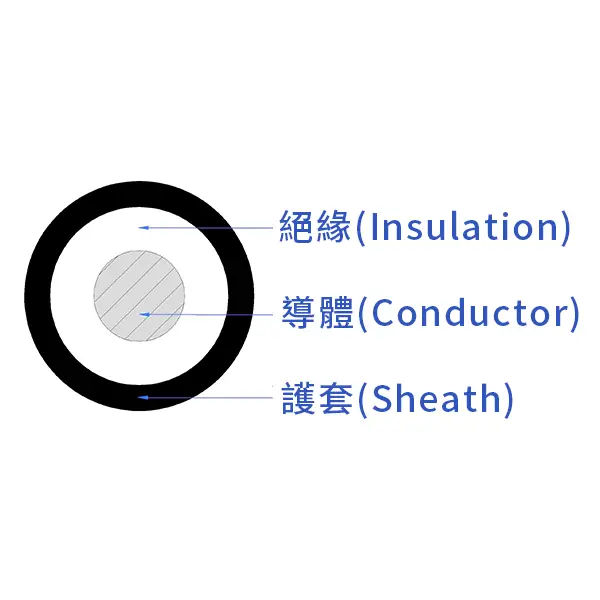

Construction
- Conductor: Tinned annealed stranded copper, EN 60228 Class 5
- Insulation: Low-smoke, halogen-free cross-linked polyolefin
- Sheath: Low-smoke, halogen-free cross-linked polyolefin
- Sheath Colors: Black, red
Material Properties
- Flame Resistance: IEC 60332-1-2
- Halogen-Free: IEC 62821-1
- UV and Ozone Resistance: IEC 62930, IEC 60811-403
- Acid and Alkali Resistance: IEC 60811-404
- Compliant with RoHS and REACH
Product Series

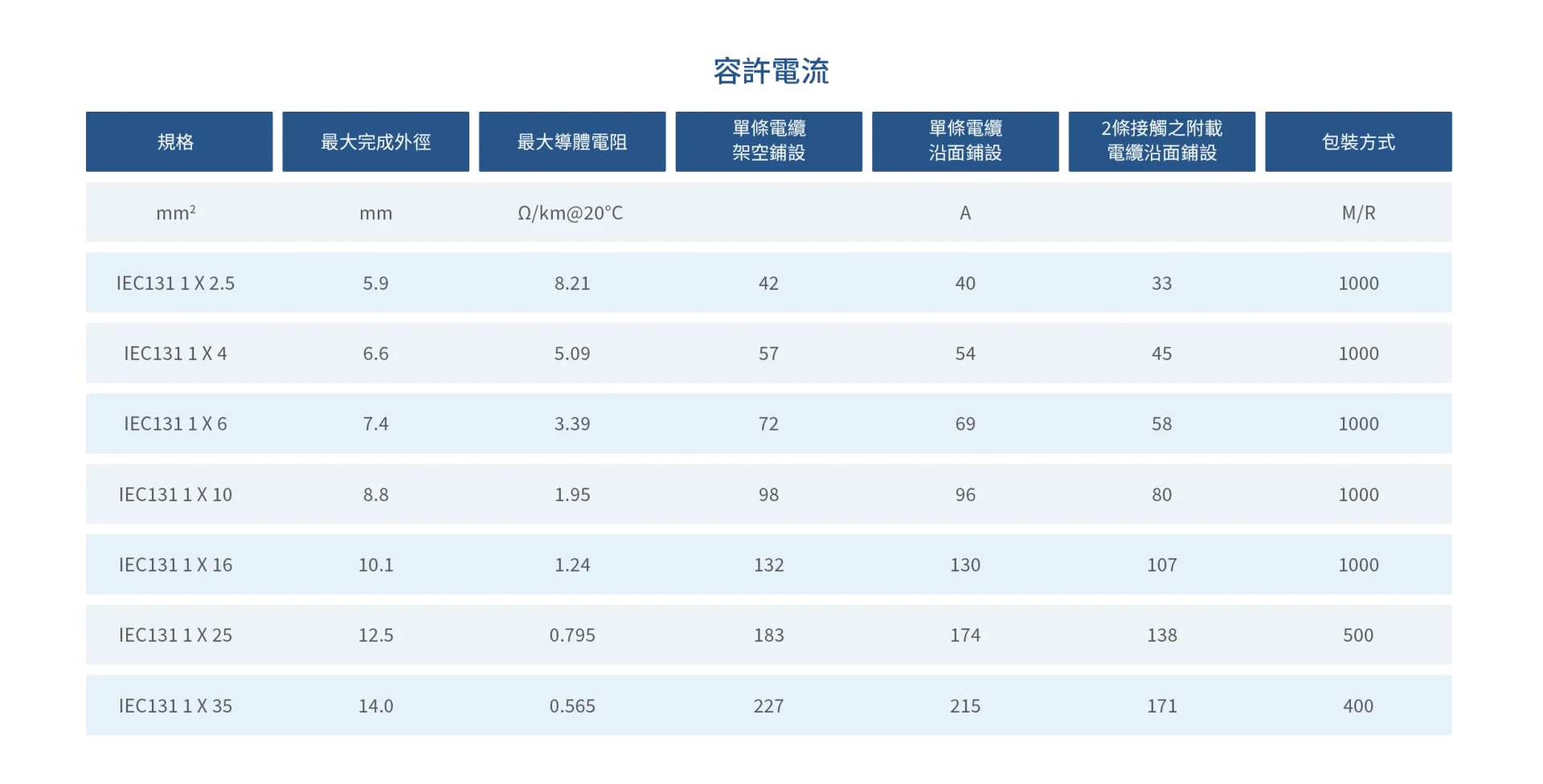

- Product Specifications: 1x2.5mm² / 1x4mm² / 1x6mm² / 1x10mm² / 1x16mm² / 1x25mm² / 1x35mm²
Certifications
- Applicable Standard: IEC 62930:2017
- Certificate Number: R 50536816
All rights reserved.Subject to change with notice.
Product Highlights
Low-Smoke, Halogen-Free Environmentally Friendly Product
High-temperature resistant; the material does not melt
Excellent flexibility at low temperatures
