New Energy Cable Series
Electronic Wire 3000V
Energy Storage Cable
- Model: UL 11627
Application
- For internal wiring in electronic and electrical equipment, such as DC/AC inverters and power conditioners
Technical Specifications
- Rated voltage: AC 3000V; DC 3000V
- Ambient temperature: -40°C to +125°C
- Flame resistance: Meets UL FT1
- Insulation colors: Black, red, orange
- Complies with RoHS and REACH

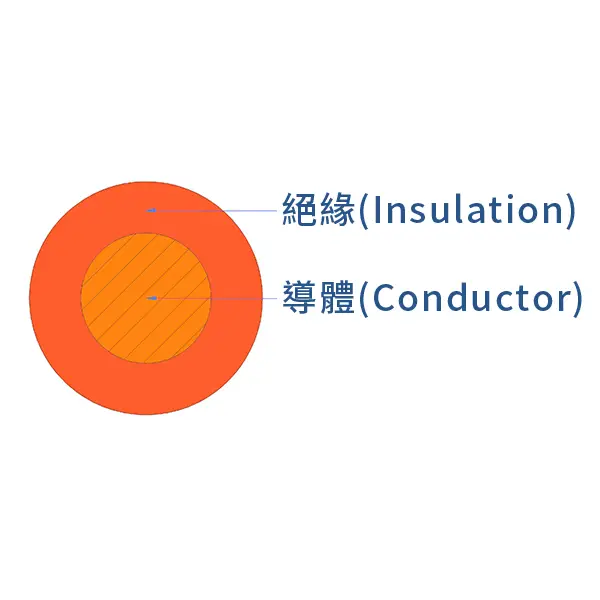

Construction
- Conductor: Tinned or bare stranded soft copper (IEC 60228 Class 5)
- Insulation: Cross-linked polyethylene (XLPE)
Certification
- Certification standard: UL 758
- Certification number: E529297
All rights reserved.Subject to change with notice.
Product Highlights
Flexible and easy to install
Long service life
Compatible with standard connectors
