New Energy Cable Series
Electronic Wire 2000V
Energy Storage Cable
- Model: UL 11627
Application
- For internal wiring in electronic and electrical equipment, such as DC/AC inverters and power conditioners

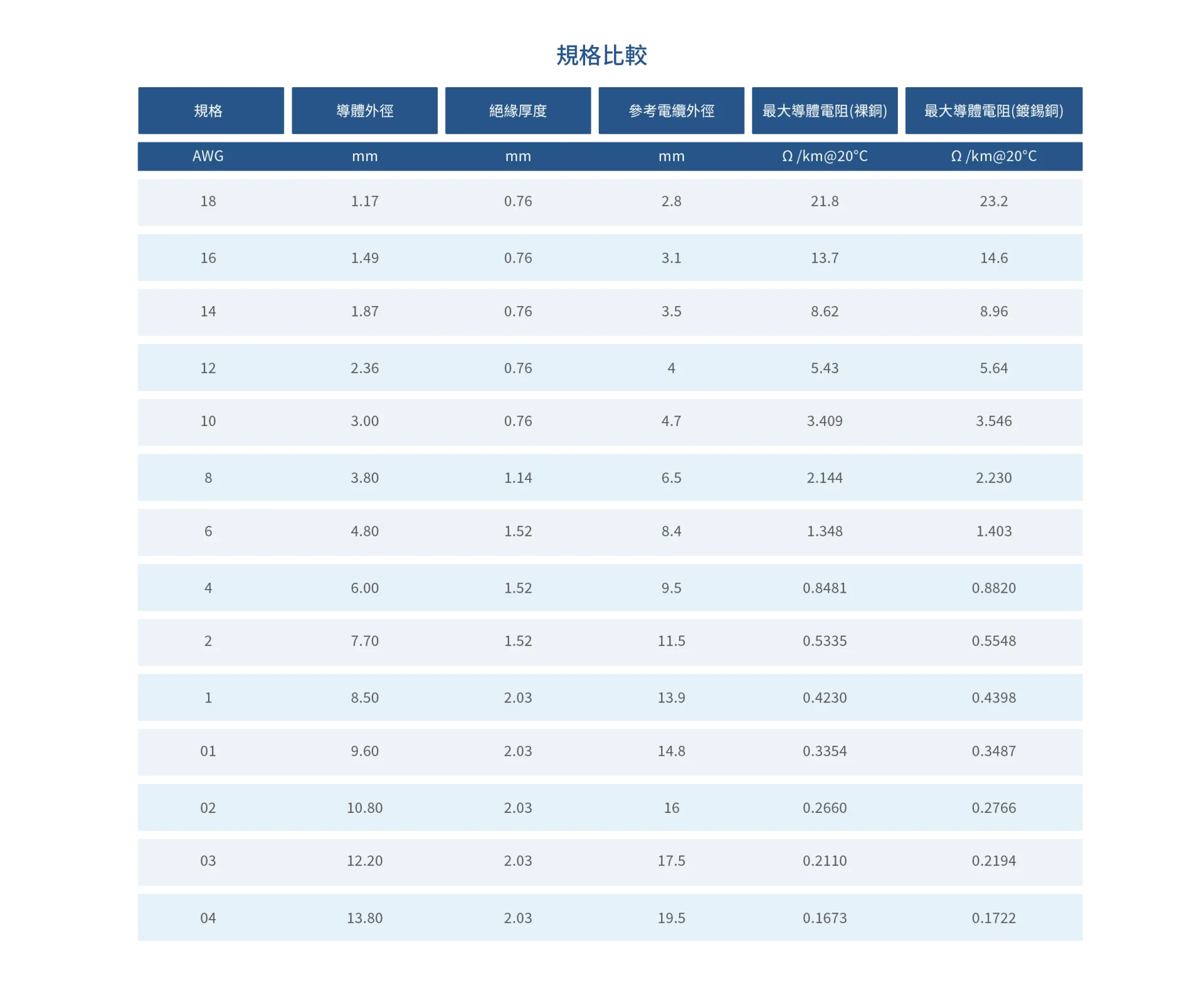

Technical Specifications
- Rated voltage: AC 2000V; DC 2000V
- Ambient temperature: -40°C to +105°C
- Flame resistance: Meets UL VW-1
- Insulation colors: Black, red, orange
- Complies with RoHS and REACH

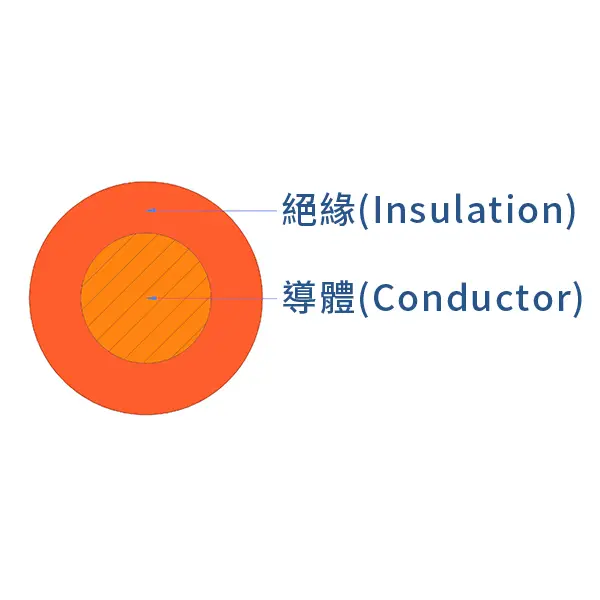

Construction
- Conductor: Tinned or bare stranded soft copper
- Insulation: Polyvinyl chloride (PVC)
Certification
- Certification standard: UL758
- Certification number: E529297
All rights reserved.Subject to change with notice.
Product Highlights
Flexible and easy to install
Long service life
Compatible with standard connectors
