New Energy Cable Series

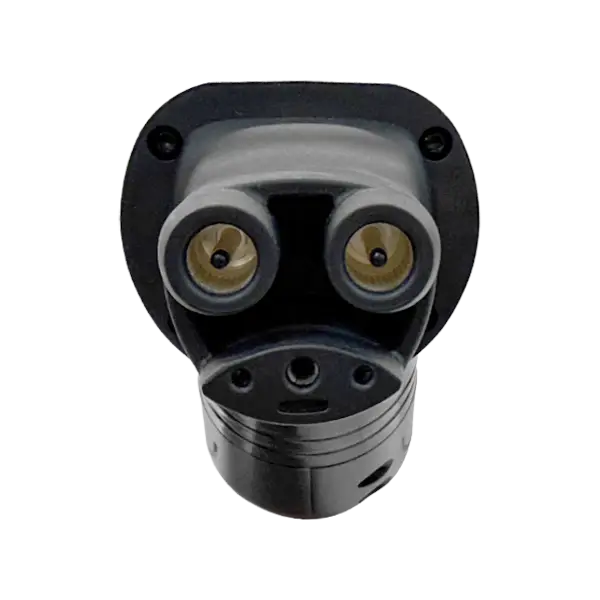

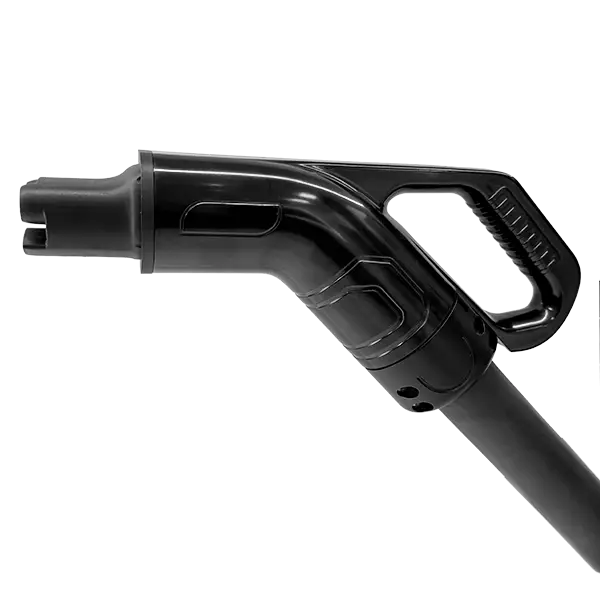

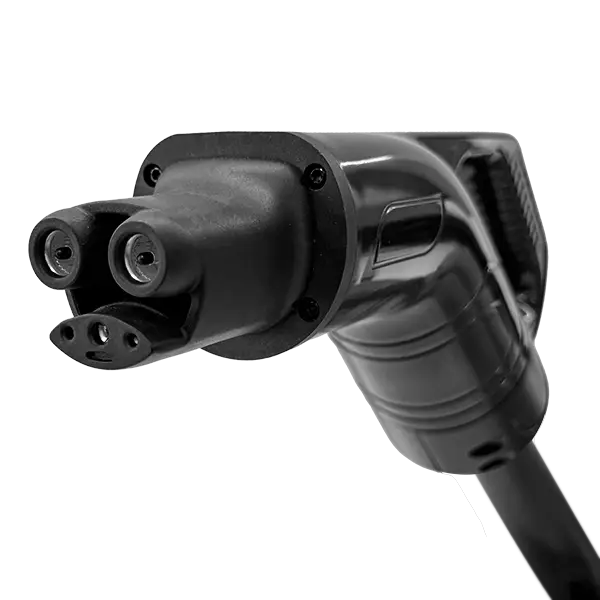

DC Charging Connector NACS
EV Charging Connector
- Product Model: HOTRON NACS DC 200A A00 / HOTRON NACS DC 300A A00
Product Applications
- Suitable for commercial use, long-distance travel, or emergency charging situations

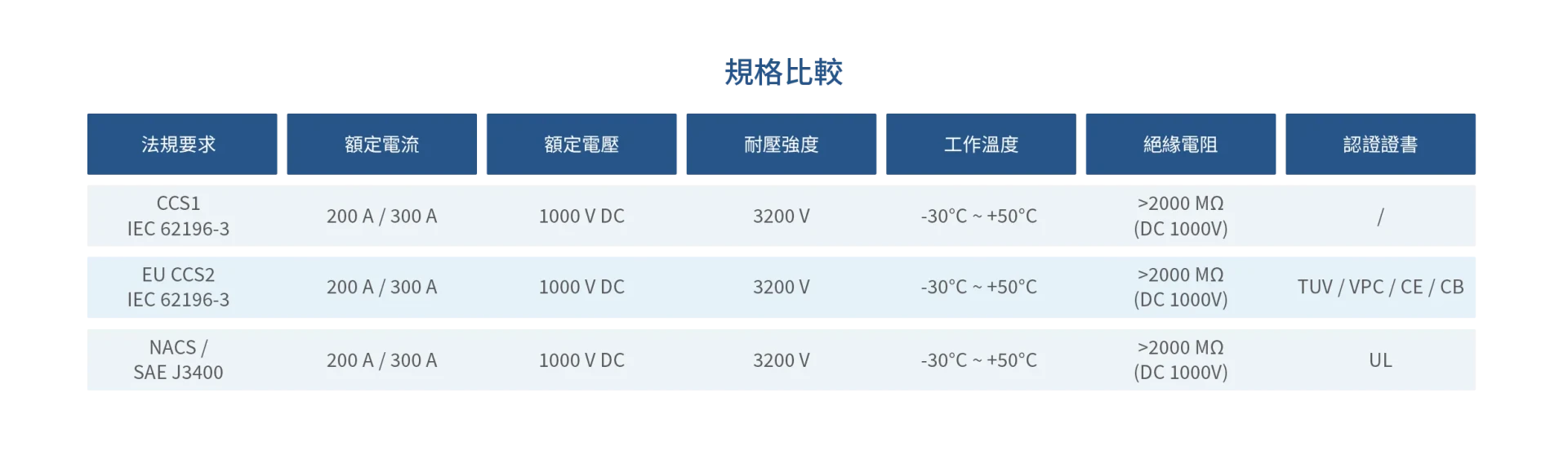

Technical Specifications
- Rated Voltage: 1000 VDC
- Rated Current: 200A / 300A
- Withstand Voltage: 3200V/AC
- Operating Temperature: -30°C 至+50°C
- Insulation Resistance: >2000MΩ ( DC 1000V )
- Service Life: ≥ 10000次
Material Properties
- Housing: Made from imported PC9330 plastic material; compliant with RoHS and REACH, halogen-free, and UV-resistant.
- Mechanical Properties: Tensile modulus 2100 MPa, yield strength 58.6 MPa, tensile strength at break 61.4 MPa, and elongation 130%.
- Low-Temperature Impact Performance: Maintains good performance at extremely low temperatures (-60°C).
Certifications
- Applicable Standards: IEC 62196 / UL 2251 / SAE J3400
- Certification Obtained: UL
All rights reserved.Subject to change with notice.
Product Highlights
More Ergonomic Design
Smaller Outer Diameter for DC Cables
Higher Current and Faster Charging with Air Cooling
